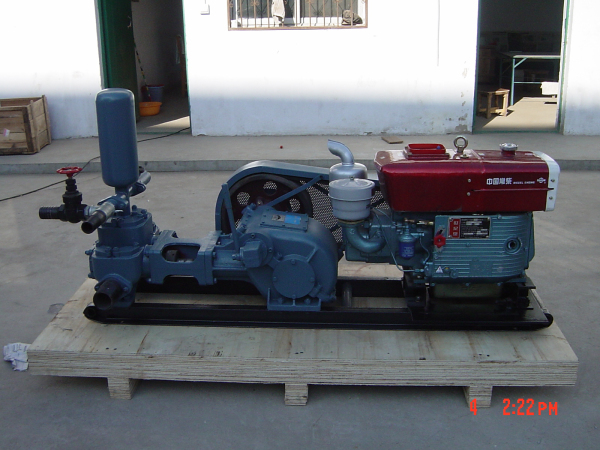

BW200 Continous Grouting Pump
Description
BW-200 plunger mud/grouting pump is a horizontal, double cylinders, double acting reciprocating piston pump. It has the advantages of compact construction, light weight, readily movable and easy to be operated etc . The pump can be driven by electric motor or diesel engine according to the requirement of the customer in order.
Technical data sheet:
BW-200 Mud Pump | |
type | Horizontal piston pump |
Piston stroke | 85mm |
Inside diameter cylinder | 80mm;65mm |
Rated pressure(Mpa) | 4;6 |
Reciprocating piston number | 145 |
Rated Flow | 200; 125 |
Power | 15KW |
Triangle belt type specifications ,number | 385mm, B, 5 |
Suction tube diameter | 65mm |
Discharge pipe diameter | 37mm |
Dimension | 1050x630x820mm |
Weight | 300kg |
