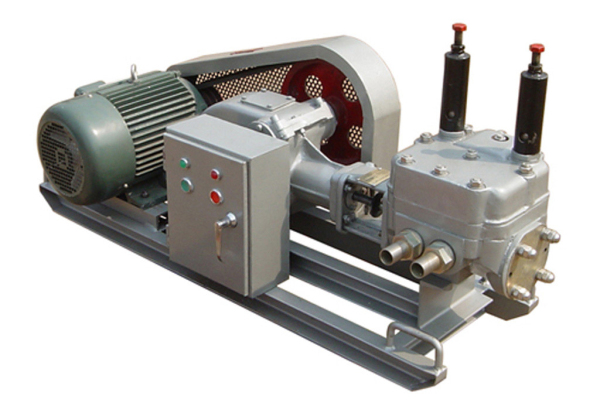

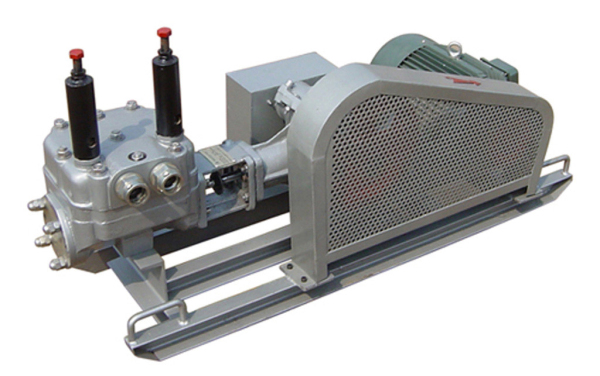

GDM60/40 Medium Pressure Cement Grouting Inject Pumps
Description
Our grouting pumps provide widely range grouting pressure selection as well as the dependability and durability required on your job site. The grouting pumps are ideal for grouting-process in underground and civil applications.
Features
•Single Piston with double outing-acting
•Gear reducer with electric motor drive
•Ball valve
•Compact size
•High-strength aluminum casting pump house
Technical Data Sheet
Rated Output | 60L/min |
Rated Pressure | 4MPa(40bar/580psi) |
Cylinder Dia. | 75mm |
Piston Stroke | 85mm |
Stroke/Minute | 85/min |
Inlet diameter | 51mm |
Outlet diameter | 38mm |
Power unit | 5.5KW(Electric) |
Transmission | V-belt+gearbox |
Chassis | Skid |
Weight | 210kg |
Overall Dimensions | 1280x485x645(mm) |
