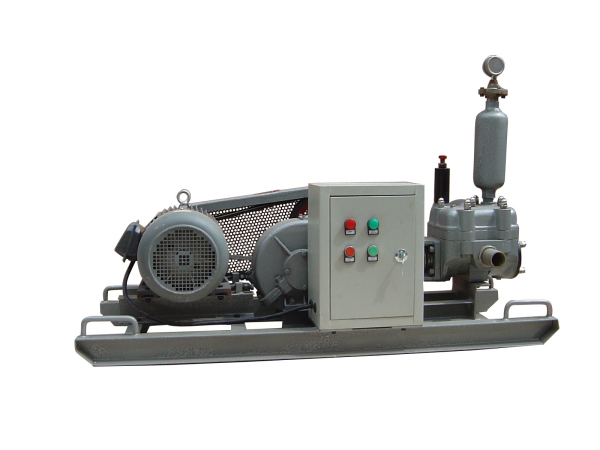

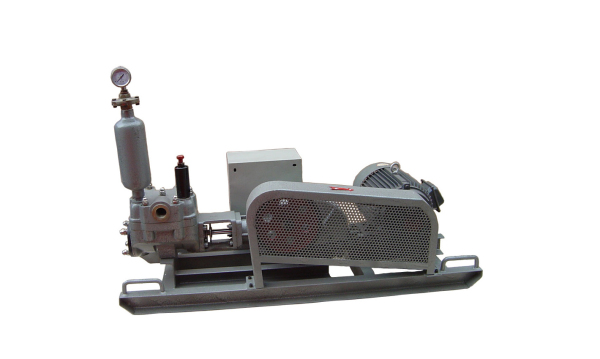

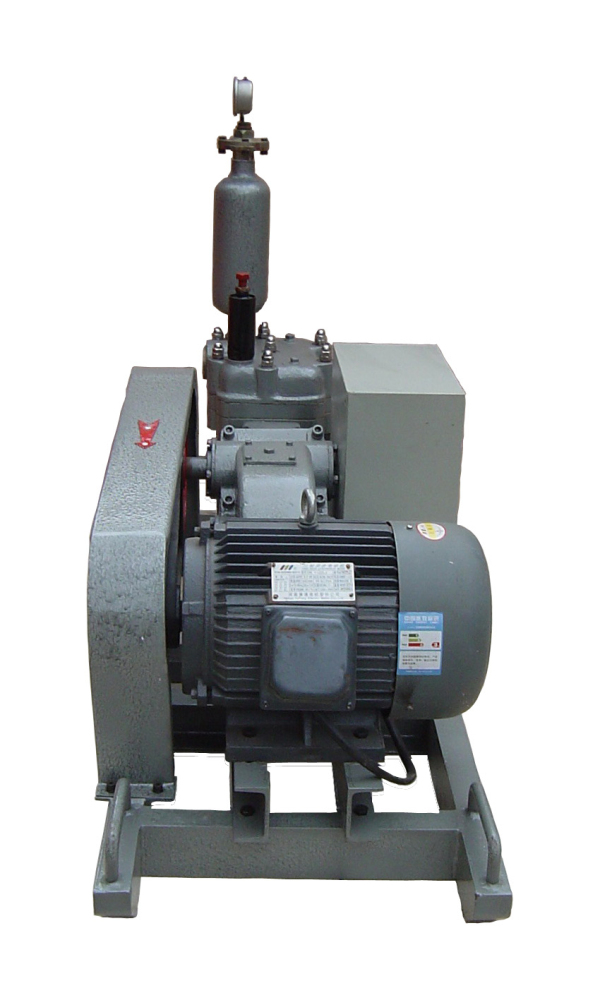

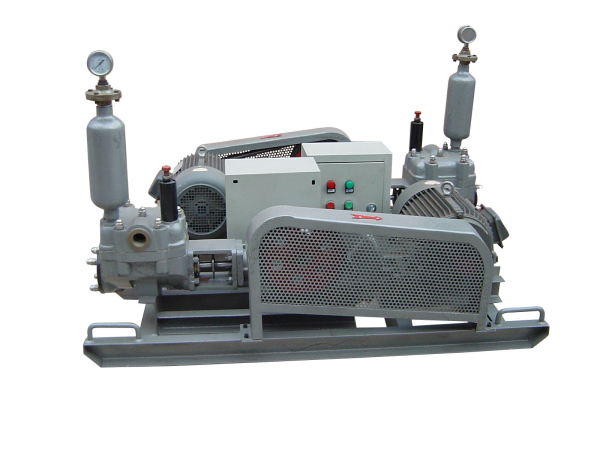

GDM60/20E Customized Export to Singapore Malaysia Jet Grouting Pump
Features
•Single Piston with double outing-acting
•Gear reducer with electric motor drive
•Ball valve
•Compact size
•High-strength aluminum casting pump house
Technical Data
Rated Output | 60L/min |
Rated Pressure | 2MPa(20bar/290psi) |
Cylinder Dia. | 75mm |
Piston Stroke | 85mm |
Stroke/Minute | 83/min |
Inlet diameter | 51mm |
Outlet diameter | 38mm |
Power unit | 5.5KW(Electric) |
Transmission | V-belt+gearbox |
Chassis | Skid |
Weight | 230kg |
Overall Dimensions | 1450x550x950(mm) |
