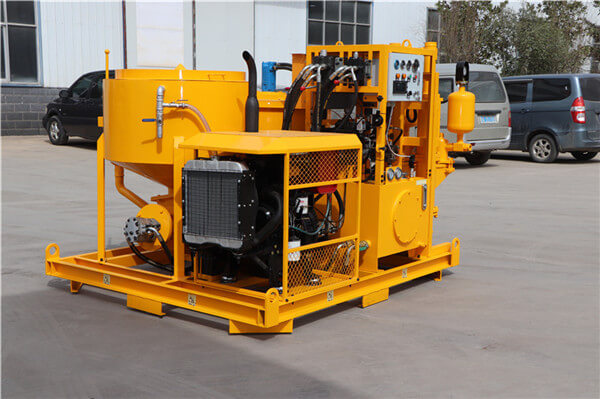

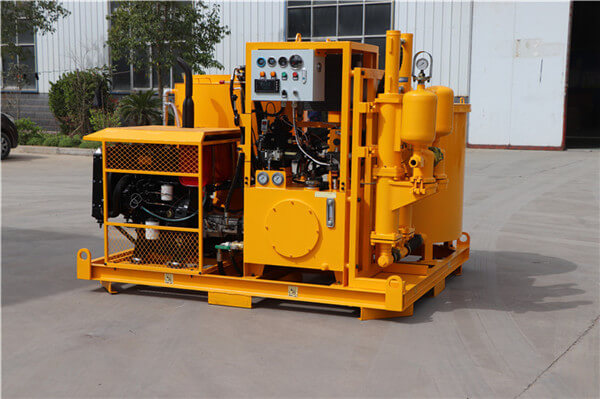

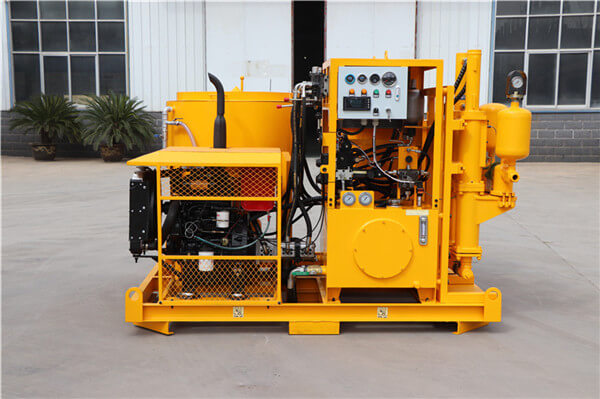

Factory sale cement injection grout pump plant
Factory sale cement injection grout pump plant is a device that integrates a mixer, agitator, and grout pump. A special mixing effect of cement or bentonite and water is archived in the mixer by the high turbulence generated in the pump casing.
Factory sale cement injection grout pump plant principle of operation is that cement or bentonite and water are held in the mixer by the violent turbulence generated within the pump casing. This high shear turbulent flow separates the cement or bentonite particles to form a fully hydrated suspension.
As soon as the mixing process is completed, the mixture is transferred to the mixer. A slow stirring paddle keeps the grout from settling out of suspension and removes air bubbles from the mixture. Each machine includes a capacity-matched mixer and pump, along with an agitated storage tank, to allow near-continuous operation once work is started.
Factory sale cement injection grout pump plant product features are:
1. Hydraulic reversal and hydraulic drive of vertical grout pump
2. Injection pressure and output are steplessly adjustable
3. Adoption of square agitator realizes downsizing and miniaturization of equipment
4. High speed and low speed, switching by rotary ball valve
5. Has the ability to record and display the number of round trips of the grout pump
6. High-speed vortex mixer enables high-speed and uniform mixing
7. Stirrer and agitator are switched by squeeze handle, which is safe, reliable and easy to operate
Factory sale cement injection grout pump plant is safer, the oil temperature gauge can automatically control the cooling fan to work within the normal temperature range, and the machine will automatically stop working when the temperature is too high. increase.
The cement injection grout pump plant are available in different models, providing stepless adjustment of grout pressure and output, customizable mixer volume, and mixer capacity. Grout Pump has piston type, plunger type, and hose type. Mixer capacities from 200L to 800L, from 300L to 1200L, pump flow rates from 0 to 200L/min and pressures from 0 to 100 bar.
Our grouting, stirring, and pumping equipment is available in various design combinations for flexible adaptation to the construction environment. Mixers, mixers, and pumps are reasonably distributed and the discharge is reliable. In order to make it easier to meet the needs of the customer's on-site construction, our specialized engineers will design the system according to the customer's needs. Product parameters can also be discussed and improved.
If you have any questions, please contact us. We will provide corresponding product parameters and quotations. We are grouting equipment factories. It can also be customized according to your requirements.
