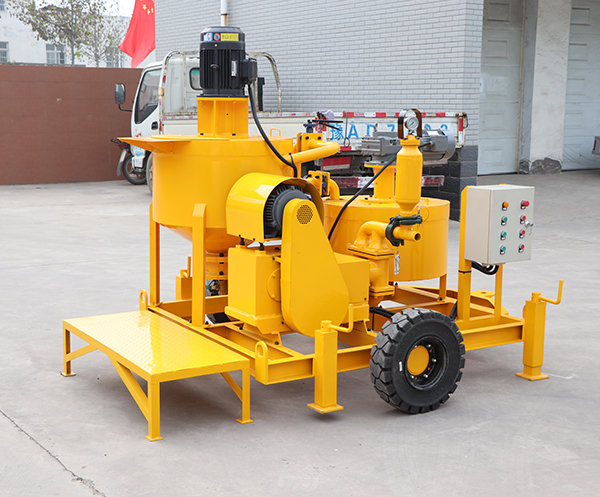

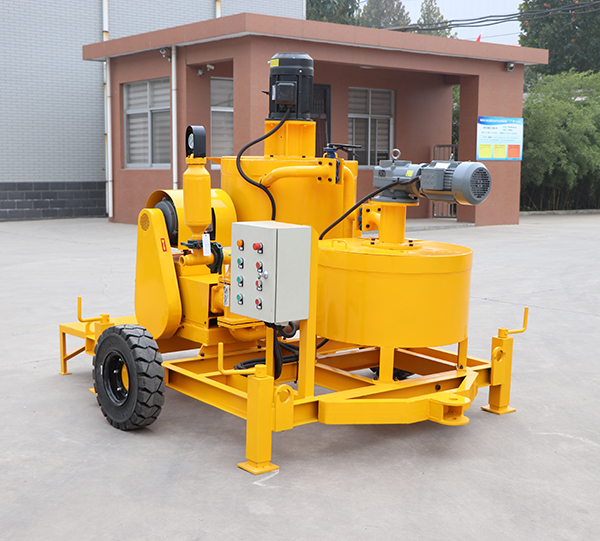

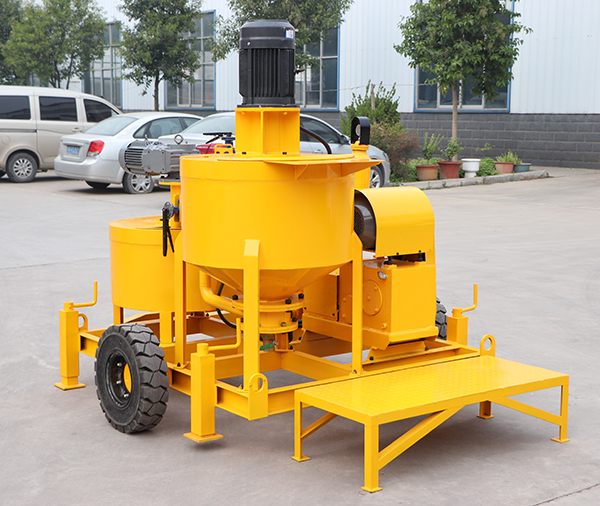

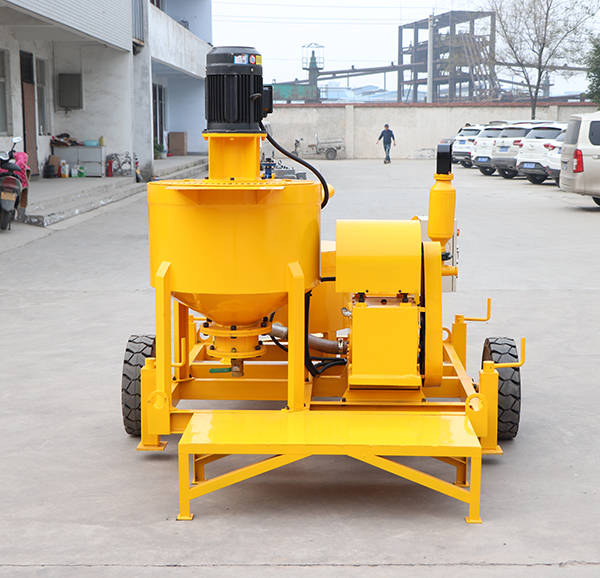

Cement injection grouting pump mixing machine

Cement injection grouting pump mixing machine is a mixer grout group with squeeze type hose pump, mixing tank, agitator tank, electric control system and frame. This applies to mixing and pumping cement slurries or similar slurries.

During operation, water and cement are added to the mixing tank according to a certain ratio, and the materials are evenly mixed in a high-speed continuous flow under the action of the mixing pump. The blended slurry is discharged to a storage tank through updated operating valves and sucked into a hose pump. Slurry is continuously pumped, similar to the working principle of squeeze-type hose pumps.

Cement injection grouting pump mixing machine combines mixers, agitators and grout pumps in one plant. Cement injection grouting pump mixing machine incorporates a volume-matched mixer and pump to allow virtually continuous operation once work is started, along with an agitated storage tank.

Gaodetec is he one of China's leading grouting pump mixing machine suppliers. Gaodetec has dozens of grouting pump mixing machine and can also supply customized grouting plants according to customer requirements. At present, Gaodetec mainly supplies electric grouting plants and diesel engine driven grouting plants.

According to the different grouting pump mixing machine, we also have single piston pump, double piston pump and plunger grout pump for option.

Features of cement injection grouting pump mixing machine:

Hydraulic reversing and hydraulic drive for vertical grout pump;

Grouting pressure and output are steplessly adjustable.

Using a rectangular agitator makes the plant structure compact and small in size.

At high and low speeds by rotating the ball valve switch.

Equipped with a function to record and display the number of reciprocations of the grout pump with a counter.

The mixer agitator switch is an easy and reliable squeeze handle.

The cement injection grouting pump mixing machine mainly used in highways, railways, hydropower, construction, mining and other aboveground and underground construction. A high-speed vortex mixer ensures quick and uniform mixing. Water, cement and other media are quickly mixed into a uniform slurry. The mixed slurry was then sent to an agitator. The grout pump injects from the mixing drum (storage tank). This ensures continuous mixing and grouting operations. The grout pump is hydraulically driven. Injection pressure and displacement are steplessly adjustable. Compact size and easy to operate. It also occupies a small space.

Many customers have given us feedback that the product is very convenient. We also provide detailed after-sales and guidance online, so you don't have to worry about using the product.

With years of experience, Gaodetec has developed his own R&D team and technician team to support further development and customized service for customers. Grout mixing and pumping equipment, grout mixer volume from 200L to 800L, grout agitator volume from 300L to 1200L, grout pump flow rate from 0 to 200L/min, pressure from 0 to 100 bar.

If you have other needs, please contact us!
