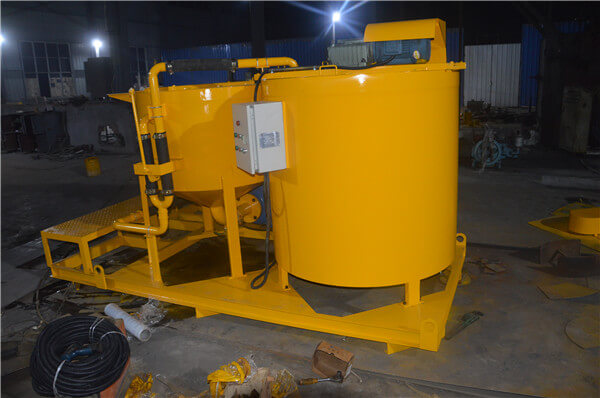

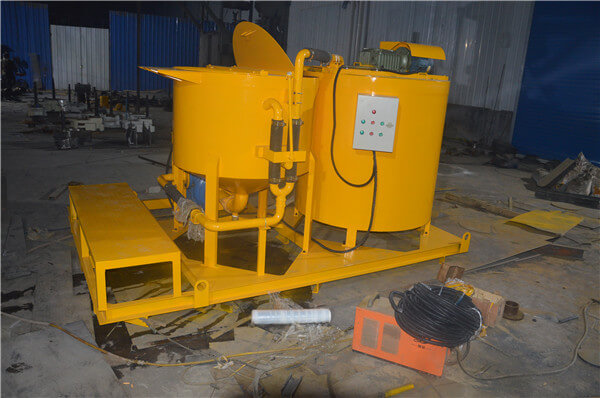

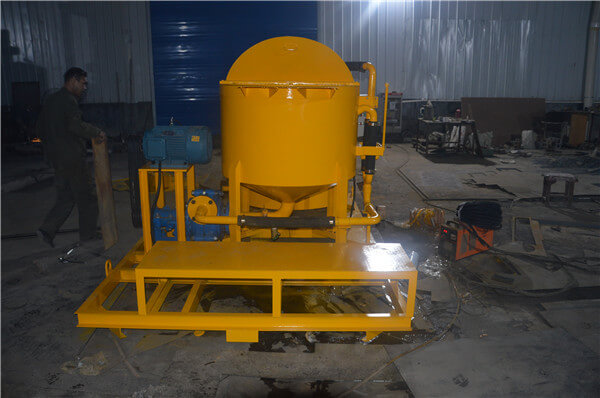

High efficient grouting mixing machine

High efficient grouting mixing machines are also used in the construction of hydropower, railroads, highways, construction, mining, and other industries. we can quickly mix grout or squeezer, cement, and water into the slurry. Compared to common grout mixers, high efficient grouting mixing machines feature high pulping efficiency, easy operation, uniform slurry, and short-distance transport capabilities.

When the high efficient grouting mixing machine is activated, cement and water are poured into the pulping cylinder in proportion, and the material in the cylinder flows uniformly at high speed by the action of the pulping pump, and the prepared slurry flows in. Storage cylinder via a valve. A stirring paddle is attached to the storage barrel to prevent the slurry from settling.

Functions of high efficient grouting mixing machine:

1. High efficiency and large reserves applicable for various grout injections

2. Engineering operation.

3. Safe and reliable; key component motors have a high level of protection.

The mixing arm of the high efficient grouting mixing machine adopts high strength, strong force, and frame modification structure without deformation.

Safe operating procedure for high efficient grouting mixing machine:

(1) It is necessary to select an appropriate distributed disk and mixing head according to the work requirements. To replace a distributed disc or mixing head: First loosen the nut at the bottom of the distributed disc with a wrench, remove the distributed disc to be replaced, and then replace it with a new disc. The upper distributed disc is screwed into the drive shaft.

(2) After turning on the power, turn on the power switch, turn the speed control knob of the motor to the right to start rotation slowly, and turn the motor to the left to decelerate slowly. If the rotation speed is high, the stir bar will shake slightly, but it will not affect the use under normal conditions. Note: The mixing head of this machine is strictly prohibited from leaving the material in motion.

(3) After finishing the work, return the governor to 0, turn off the power switch, turn off the power, and unplug it.

(4) After use, the high efficient grouting mixing machine needs to be cleaned in time.

When cleaning the high efficient grouting mixing machine, the residual cement slurry should be thoroughly cleaned to prevent residual agglomeration that can cause equipment failure during the next use. After cleaning the high efficient grouting mixing machine, add grease to the grease holes to extend the useful life of the internal seal of the transmission assembly.

If you are interested in the high efficient grouting mixing machine, please contact us.
