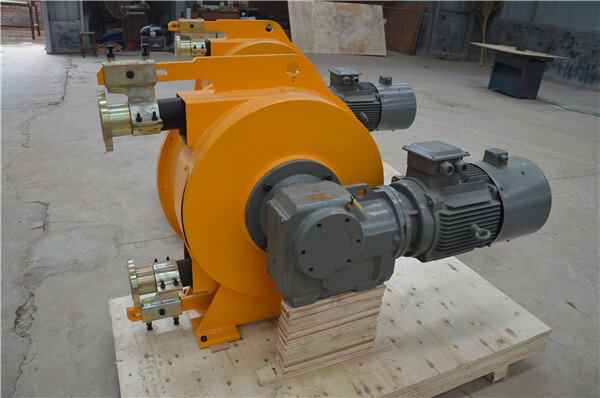

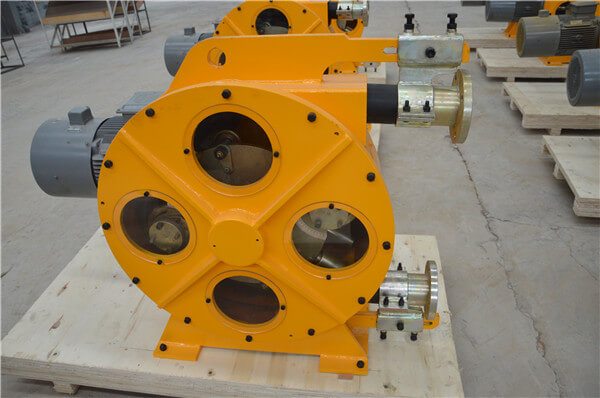

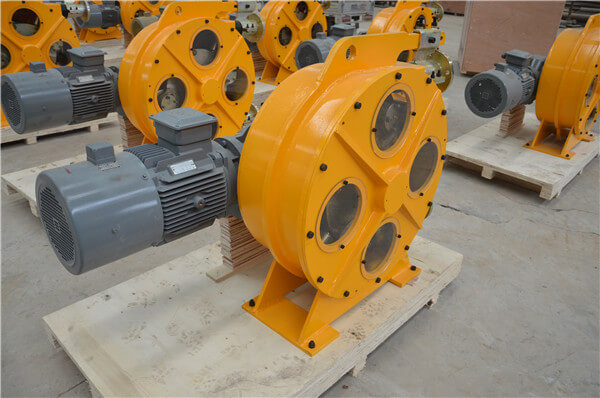

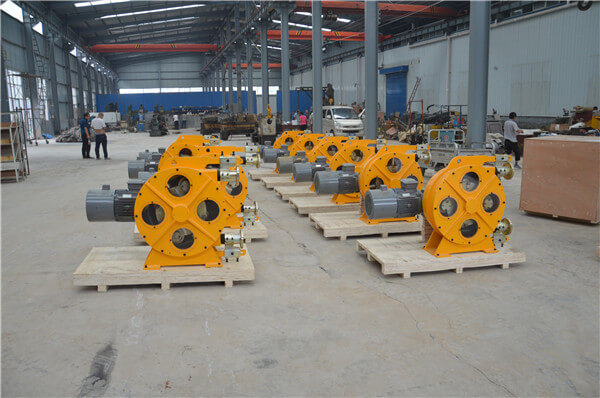

Industrial Hose Peristaltic Squeeze Pump for Slurry

Industrial Hose Peristaltic Squeeze Pump for Slurry is a new multifunctional multipurpose industrial pump developed by absorbing advanced foreign technology. Industrial Hose Peristaltic Squeeze Pump completely eliminates the operating modes of traditional pump impellers and shaft seals, and has great advantages in transporting media containing high viscosity, high corrosion, and large fluid impurities. This is a completely different principle from traditional pumps and has a wide range of uses.

Working principle of industrial hose peristaltic squeeze pump: A special rubber hose with smooth inner wall and reliable strength is attached to the inside of the pump. A pair of pressure rollers rotate, squeeze along the rubber hose and squeeze the hose. This rotation causes the media to flow toward each other. After the hose transports the medium, the elasticity of the crushed hose and the force of the side guide rollers restore the hose to its original shape. At this time, a high vacuum is generated in the hose. The medium is sucked into the tube cavity again. The medium is then ejected from the tube under the pressure of a subsequent pressurizing roller. Starting from this cycle, the medium is continuously sucked in and discharged.

Features of Industrial Hose Peristaltic Squeeze Pump for Slurry:

1. No valve operation, no backflow, stable pump flow, and low failure rate.

2. Feel free to replace the suction port and the discharge port. When the pump is clogged, the reversible pump can clear the clog.

3. High vacuum and strong self-priming ability.

4. Convenient maintenance, fragile parts (excluding extruded hoses).

Before Industrial Hose Peristaltic Squeeze Pump for Slurry starts to function, please make the following preparations before starting.

1. Check if the reducer lubrication in the pump cavity is sufficient.

2. Make sure that the inlet and outlet pipes of the pump are properly installed and secured. Whether the bolts on each flange are tightened.

3. Check if both the inlet and outlet valves of the pump are open.

4. Press the start and stop buttons to start the pump, check if the motor rotation matches the pump inlet and outlet, and check if the pump is clogged.

Application of Industrial Hose Peristaltic Squeeze Pump for Slurry :

1. Chemicals: corrosive, acid, alkali, phosphate liquids, inorganic materials, crystalline liquids, suspensions, emulsions, resins, electroplating liquids, electrolytes, and precipitates.

2. Agriculture: Phosphate fertilizer, compound fertilizer, concentrated slurry, sediment sludge.

3. Structure: Mortar, mortar, cement slurry, soil slurry, sludge slurry, lime slurry, foam concrete, building coating, refractory material, accelerator, ooze, waste water, sewage, etc.

4. Petroleum industry: drilling fluid, crude oil.

5. Crude industry: ceramic embryo plasma, glaze, glaze.

6. Mining: Gold slurry, Tailings, Thick slurry, Filler, Underground drainage, Adsorbent, Slurry, Mortar .

Industrial Hose Peristaltic Squeeze Pump for Slurry is high quality and easy to operate. If you are interested in peristaltic pump OEM, please contact us. Email: info@grout-pumps.co
