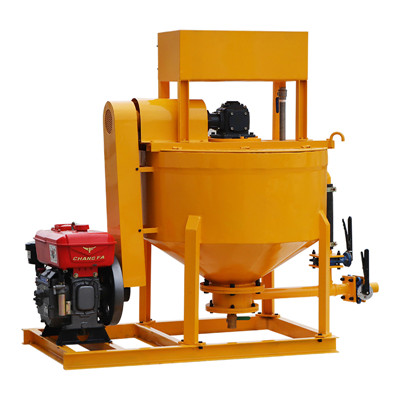

What is the high speed grout mixer machine?
The high speed grout mixer machine is a special device for slurry preparation that is superior to high speed pulping machines. The grout mixer machine is mainly used in industries such as hydropower, railway, transportation, construction and mining, cement and bentonite, mixed with water and additives to quickly form slurry. This machine adopts high speed vortex two gravity circulations, multiple shears, simultaneous tearing and crushing. The solid fluid is more highly dispersed than ordinary pulping machine and blade mixer, mixing, pulping, pumping capacity, fast pulping speed and uniform slurry mixing, it is one of the main facilities of large pulping station.
The operation of the high speed grout mixer machine is driven by a vertical motor driven by a belt of a high speed mixing shaft supported by a cantilever. The mixing blade is a fast axial flow blade. The blades are zigzag and have a large shear force that can cause irregular vortex flow. At the same time, the fluid of the solid group can be torn and crushed to carry out high dispersion and mixing. The high-speed rotating fluid is again transmitted by the fixed blade and carried coaxially with the mixing blade. The pump forces the slurry out, the slurry in the barrel is circulated quickly and evenly by the pump, and the preparation speed of the slurry is fast and less than 1 minute. Although the mixing time is fast, the prepared slurry is uniform and sufficient and has no agglomeration or fisheye effect, and is particularly suitable for the production of high concentration slurries. .
When we use the grouting mixer machine, we should remember the following things:
1. Make sure the stirring impeller rotates correctly and the slurry pipe is not leaking.
2. Add the right amount of water, turn on the device, wash and wet the pulp barrel and pipeline. The water inside is released.
3. The added water is more than 80Kg (close the main valve in front of the hopper before starting the machine, adds water to the bucket, but do not turn off the main water supply.) It can be adjusted properly, and the transmission must be cooled and washed during the pulp. Turn on the pulping machine (otherwise the transfer assembly will be exhausted, add the powder material evenly in the specified sequence, control the feeding time within 5-6 minutes. After adding all the powder materials, stir for 3-5 minutes. Continue;
4. To maintain dynamic slurry storage, the slurry is transported to the slurry storage bucket Connect the slurry press pipeline to the slurry storage bucket or transport directly from the slurry machine to the slurry hopper, then the slurry begins to press.
5. As soon as is complete, the equipment and pipeline are cleaned, the pulp machine is turned on, and the pulp machine and cement slurry remaining in the pipeline are circulated and removed.
